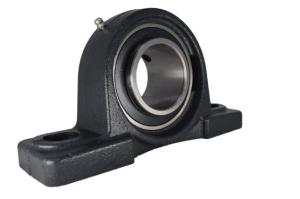

3" Pillow Block Bearing UCP215-48 VPS-248 Brand UCP215-300T Best Price
UCP215-48 Steel Pillow Block Bearing:
76.2*86.2*275mm Bearing Features:
Inner Ring Diameter (bore):76.2mm
Outer Ring Diameter:86.2mm
Width:275mm
Bearing Weight:7.3KG
UCP215-48 Steel Pillow Block Bearing Description:
| Model Number: | UCP215-48 |
| Inner diameter: | 76.2mm |
| Outer diameter: | 86.2mm |
| Width: | 275mm |
| Seal Type: | Double Shielded, 2RS |
| Material: | Chrome steel, Gcr15 |
| Precision Rating: | P0-P5 |
| Brand: | TOPE or other brands |
| Payment term: | T/T,L/C,Western Union, PayPal |
| Delivery time: | 1-5 days for small amout, 15-40 days for big amount
|
UCP215-48 Steel Pillow Block Bearing:
UCP215-48 Steel Pillow Block Bearing Description:
INTERCHANGE
AMI: UCP 215-48
Browning: VPS-248
Dodge: P2B-SC-300
Fafnir: RASC-3
Fafnir: YAS-3
Link-Belt: P3-U248N
Link-Belt: P3-Y248N
NSK: USP215-48S
NTN: UCP215-300T
Peer: FHSP215-48G
RHP: NP-3
Sealmaster: NP-48
Click Above for Full Dimensions
The UCP215-48 3" pillow block bearing unit is equipped with two specially designed setscrews positioned in the inner ring of the ball bearing to lock onto the shaft. The pillow block set screws are placed at a 90-degree angle to optimize balance between holding power and inner ring distortion. The UCP215-48 3" pillow block bearings are relubricatable and offer a full-width inner ring for added stability.
The UCP215-48 pillow block bearing also features a positive-contact, three-piece, fiber-imbedded R-seal to protect against harmfull contaminants and retain lubricant. The setscrew locking mechanism on the pillow block bearing is easy to install and well suited for reversing applications and normal loads.
Applications for the UCP215-48 3" pillow block bearing include: Construction, Conveyors, Food and Beverage, Packaging and General Industrial Equipment.
Packing Method:
We have multiple packages for shielded radial ball bearing
1. Industrial package: plastic tube + paper carton + wooden pallet
craft paper + paper carton + wooden pallet
2. Individual package: individual paper box + paper carton + wooden pallet
3. As customer's demand
Factory Photo:
Working principle:
1.Outer spherical bearing can bear radial load, radial load and axial load.
2.When it only bears radial load, the contact Angle is zero. When the deep groove ball bearing has a large radial clearance.
3.It has the performance of angular contact bearing and can bear a large axial load.
